Part and material review
Identify alloy and prior heat treatment, size, mass, and application before confirming process suitability.
MATERIAL PROCESSING / CRYOGENIC TREATMENT
Deep Cryogenic Processing.
Controlled processing. Application-specific decisions.
In-house deep cryogenic treatment for appropriate metal tools, components, and industrial parts, with cycle planning based on material, geometry, and load.

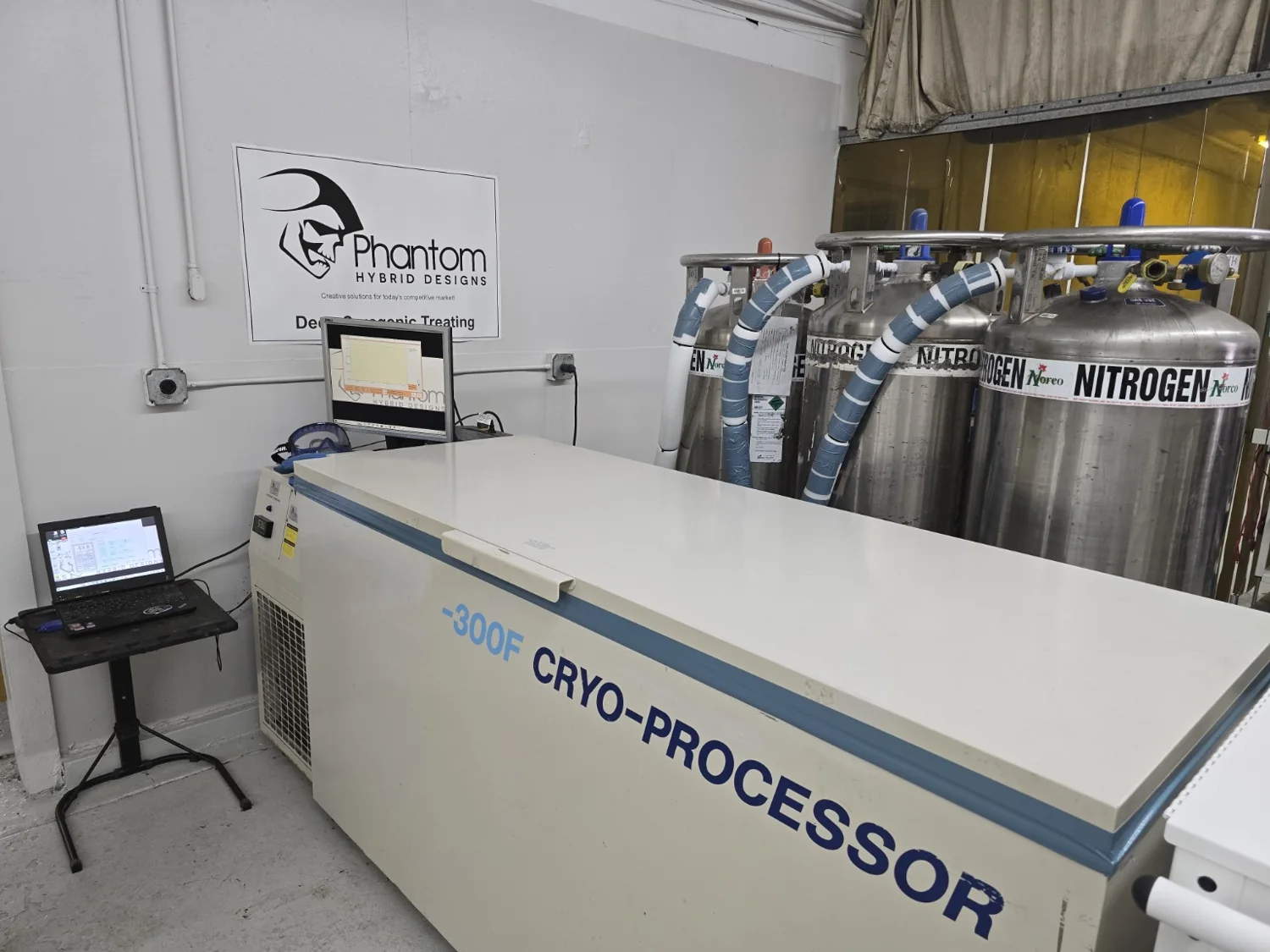

PHD CRYOGENIC PROCESSING EQUIPMENTMaterial and load reviewControlled cooldownCold soak and warm-upBatch documentation
OVERVIEW / 04
Technical work.
Defined outcomes.
Deep cryogenic treatment is a supplementary processing option for suitable materials and applications. We work with customers to review the part, material condition, existing heat-treatment history, and desired service outcomes before recommending a cycle.
Possible improvements are not guaranteed. Results vary with material, processing history, geometry, and service conditions. Cryogenic treatment is not a substitute for necessary heat treatment or validation testing.
WHAT WE CAN SUPPORT
Areas of focus.
Cycle planning
Plan controlled cooldown and warm-up rates around the slowest-changing, most massive part in a load.
In-house chamber
Usable chamber envelope: 63 inches long × 24 inches high × 17 inches wide. Actual packing and gas flow require review.
Documentation and inspection
Coordinate batch identification, handling and post-process checks agreed for the job.
Potential material benefits
Depending on the alloy, prior heat treatment, and operating conditions, deep cryogenic processing may improve wear resistance, dimensional stability, or component service life. Outcomes are application-dependent and require testing to verify.
WORKFLOW / 01—03
Define. Do.
Verify.
Project-specific planning and documentation, with requirements agreed up front.
- 01
Review the application
Share material grade, mass or drawings, previous treatment, expected operating conditions, and primary failure mode.
- 02
Agree on a controlled process
Review batch loading, estimated thermal response, equilibration approach and any required follow-up testing.
- 03
Process and document
Run the agreed cycle and capture available cycle information and job identification.
PROJECT FIT
Typical applications.
Examples are for initial scope discussions; they do not imply blanket material or equipment qualification.
- Machined steel components and wear parts
- Industrial tooling and selected cutting tools
- Equipment parts requiring a material-processing feasibility review
- Prototype evaluation where outcomes can be validated
REQUEST SERVICE INFORMATION
Let's define the work.
Contact PHD with the application, major requirements and timeline. Please keep confidential, controlled and export-restricted technical documentation off the public form.
INQUIRY / 04
Deep Cryogenic Processing
We can discuss feasibility, work scope and practical next steps.
